SketchUp 2018 下載地址
加入QQ群SketchUp2018熱門討論：SketchUp吧·建模群（192694167）
注：下載時請認準語言和版本，SketchUp2017開始僅支持64位操作系統，Mac為針對蘋果OSX操作系統版本。
更新時間：2017年11月14日
更新版本：
18.0.16975（Win 64位）
18.0.16976（Mac 64位）
SketchUp 2018升級概況 （轉載請注明出處 www.mgcxq.cn）
1、通過圖元信息面板的高級屬性功能，可以將有用的信息內嵌如模型組件中，例如價格、尺寸、URL，以及所有者和狀態信息；
2、為了使SketchUp中的信息更加有用，改進的生成報告功能可以匯總和管理組件屬性，生成明細列表；
3、只有模型信息可以在各個軟件中互導，BIM才有價值，原生的IFC格式導入導出功能現在可以確保你的模型屬性正常導入、導出和操作；
4、可命名剖切面功能使查找和管理剖切面更加方便；
5、剖切面填充功能可以通過樣式面板中打開，自動填充所需的顏色；
6、剖切面性能優化，對于復雜模型的操作，速度提升更加明顯；
7、管理目錄性能優化，減少了不必要的刷新，改進排序功能；
8、繪圖方式改進：
- 圍繞中心繪制矩形；
- 旋轉矩形邏輯微調；
- 卷尺工具實時顯示線面信息；
- 手繪線工具根據軸向顯示顏色。
9、Mac系統增加抗鋸齒設置；
10、系統設置文件調整保存位置；
11、DWG格式導入插件重寫并修正；
12、支持macOS High Sierra系統。
加入QQ群SketchUp2018熱門討論：SketchUp吧·建模群（192694167）
功能詳解
現場解讀
功能演示

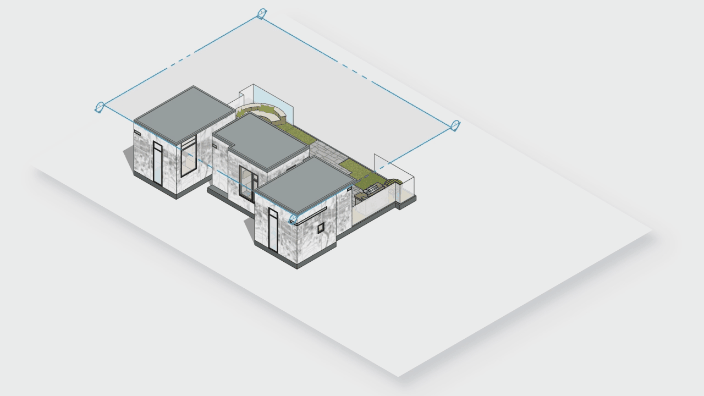

#可命名剖切面

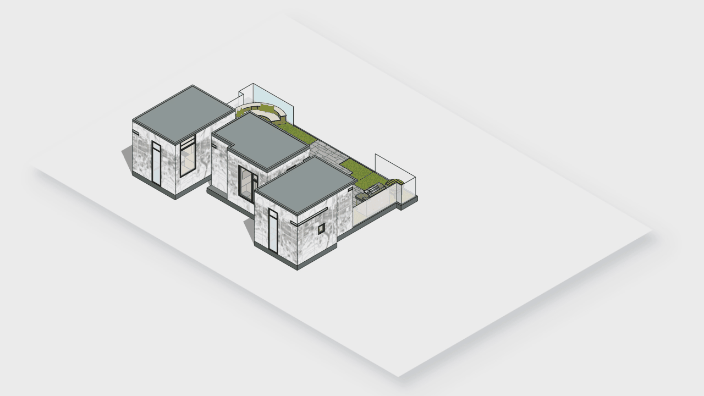

#剖切面填充

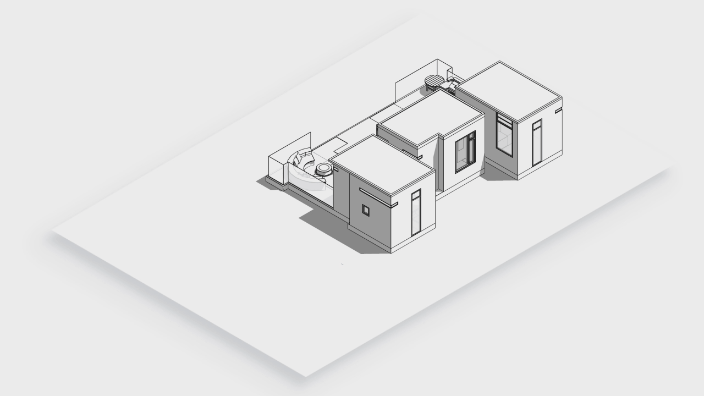

#剖切面性能優化
#矢量圖比例縮放
#DWG格式導入
#繪圖方式改進
#高級屬性
#改進的生成報告
#原生的IFC格式導入導出

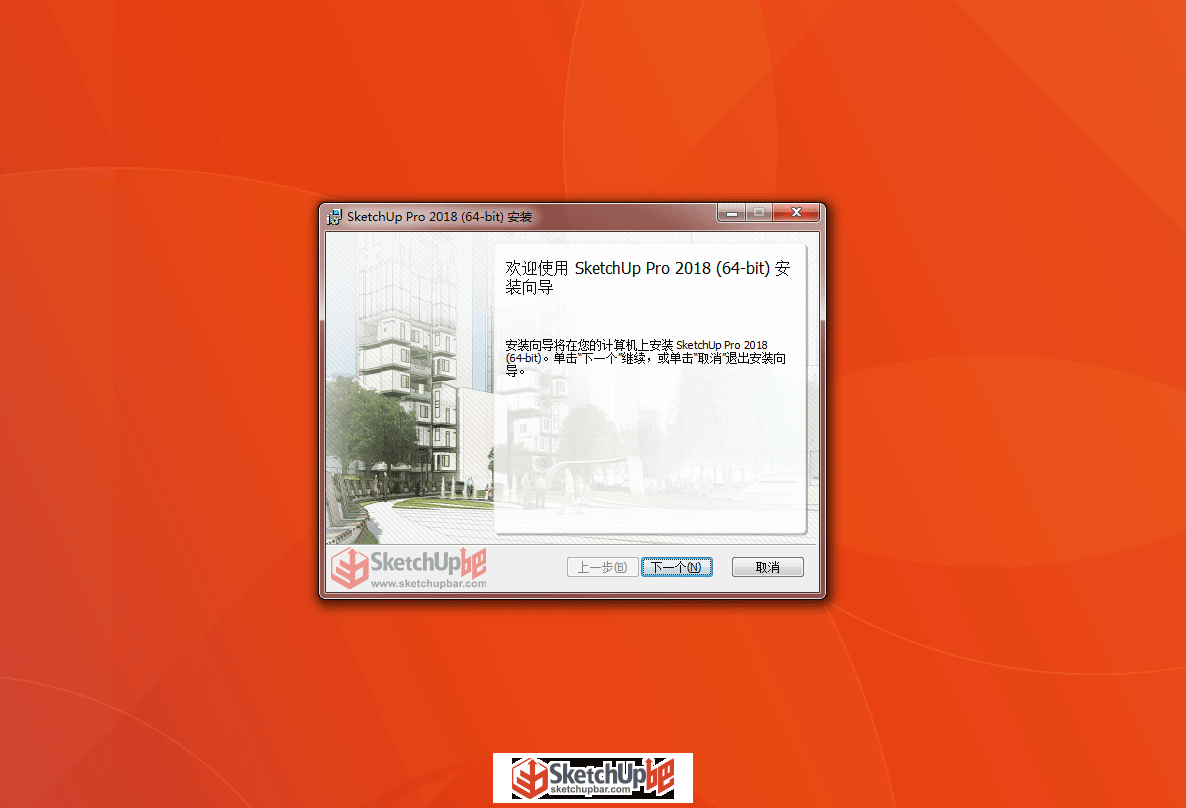

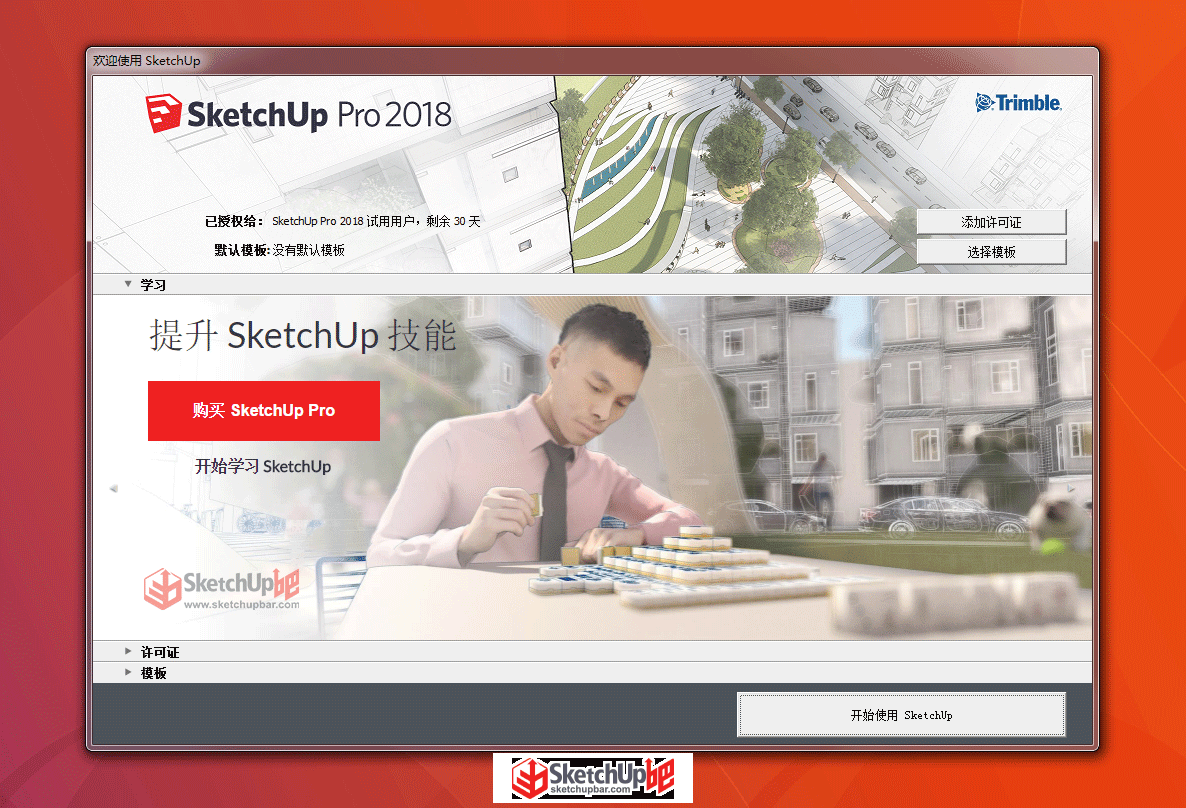

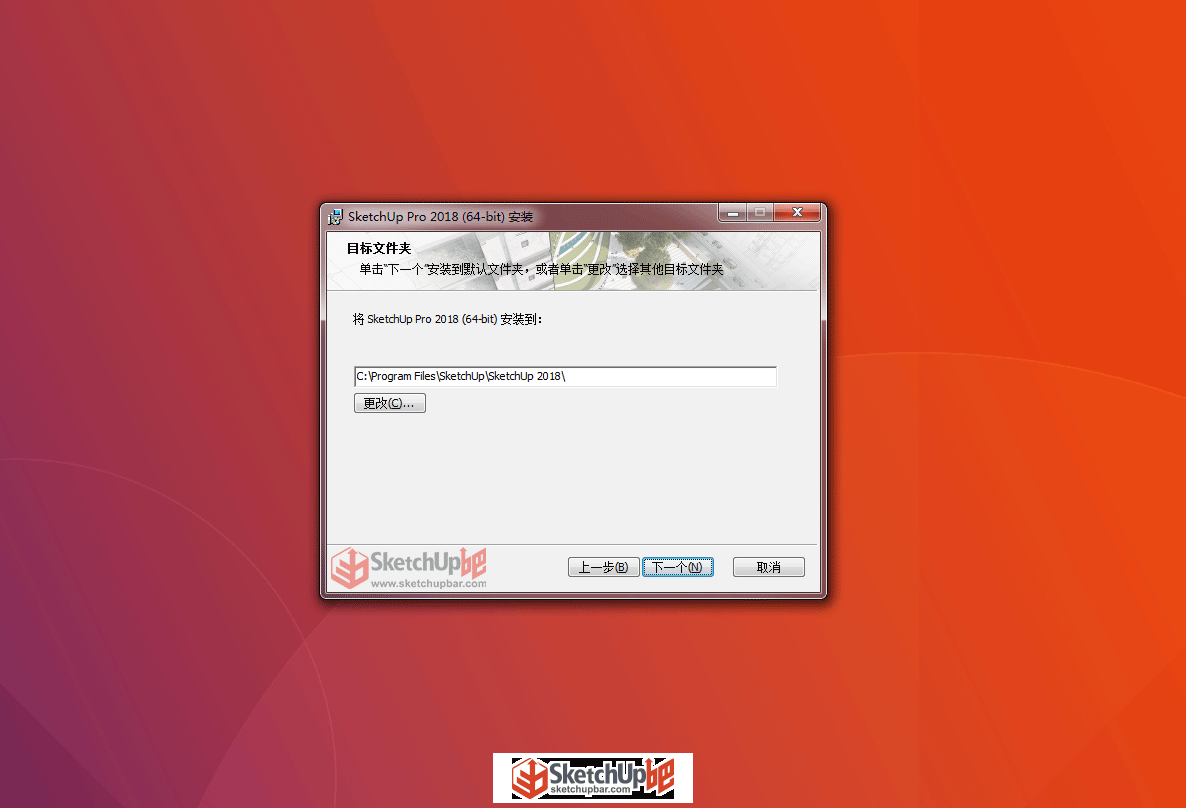

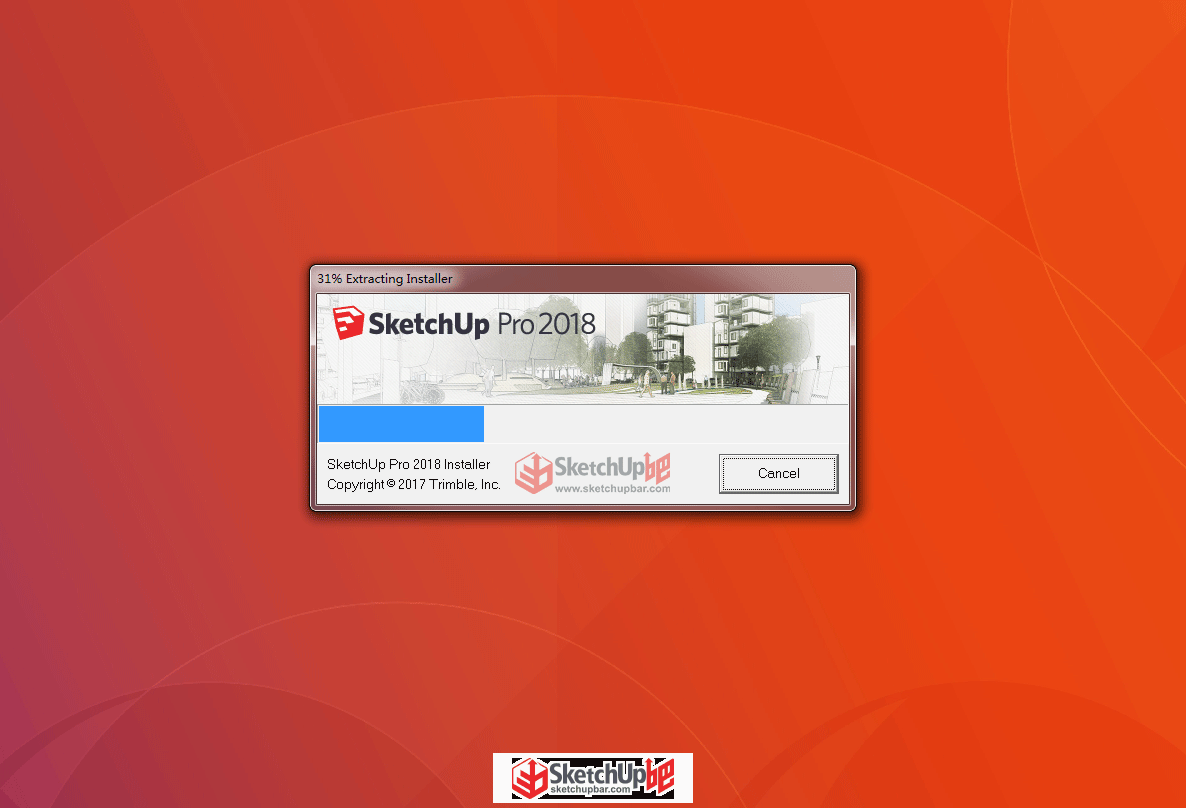

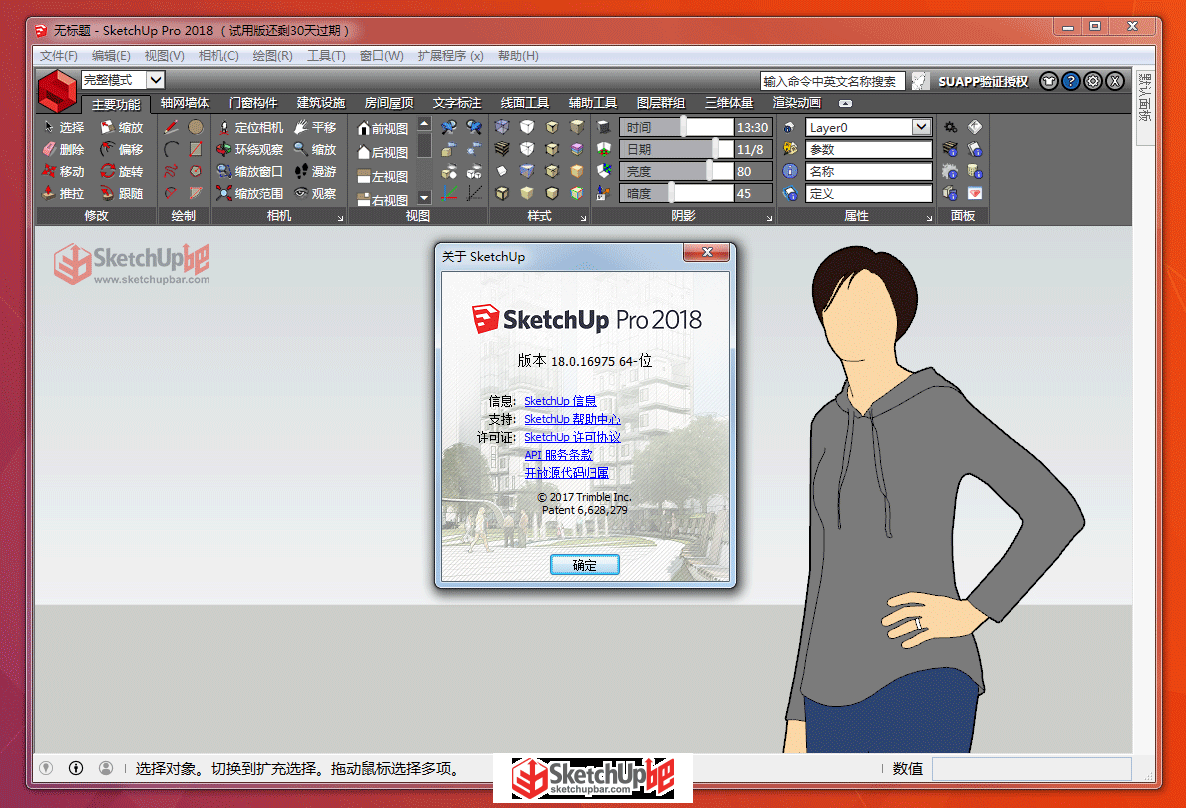

安裝截圖

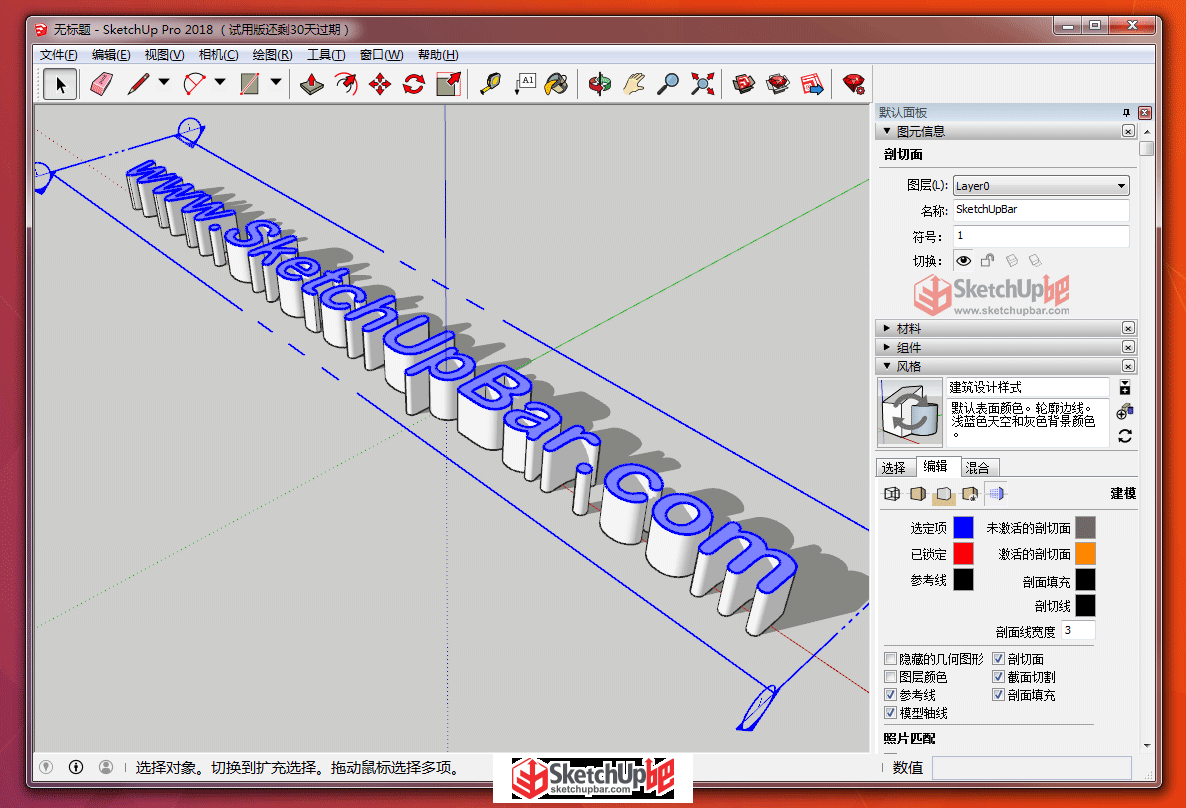

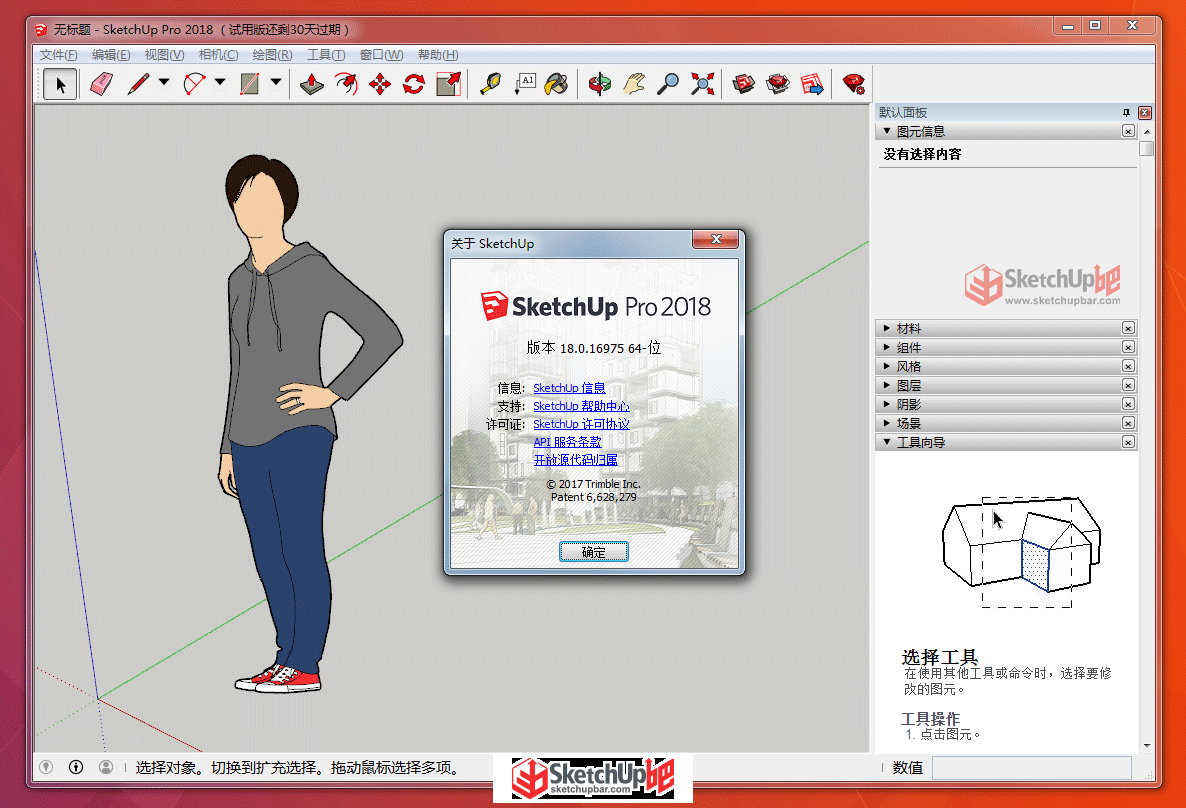

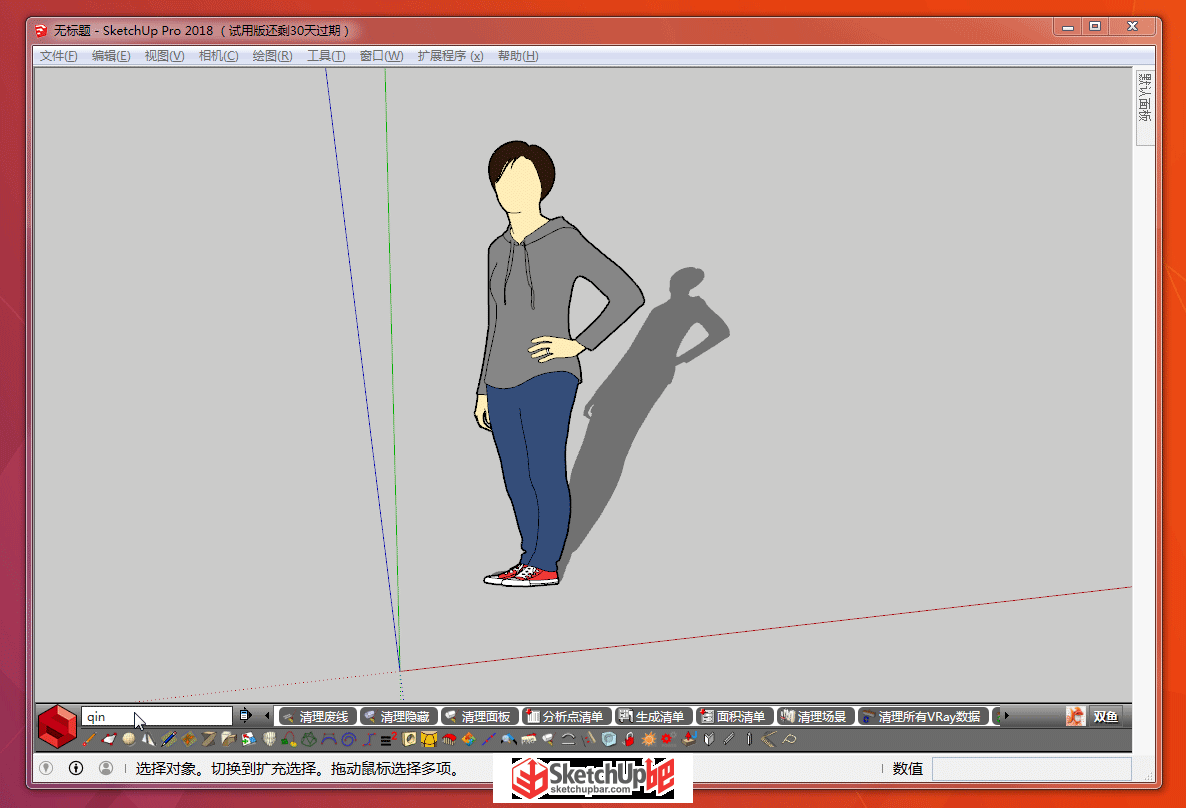

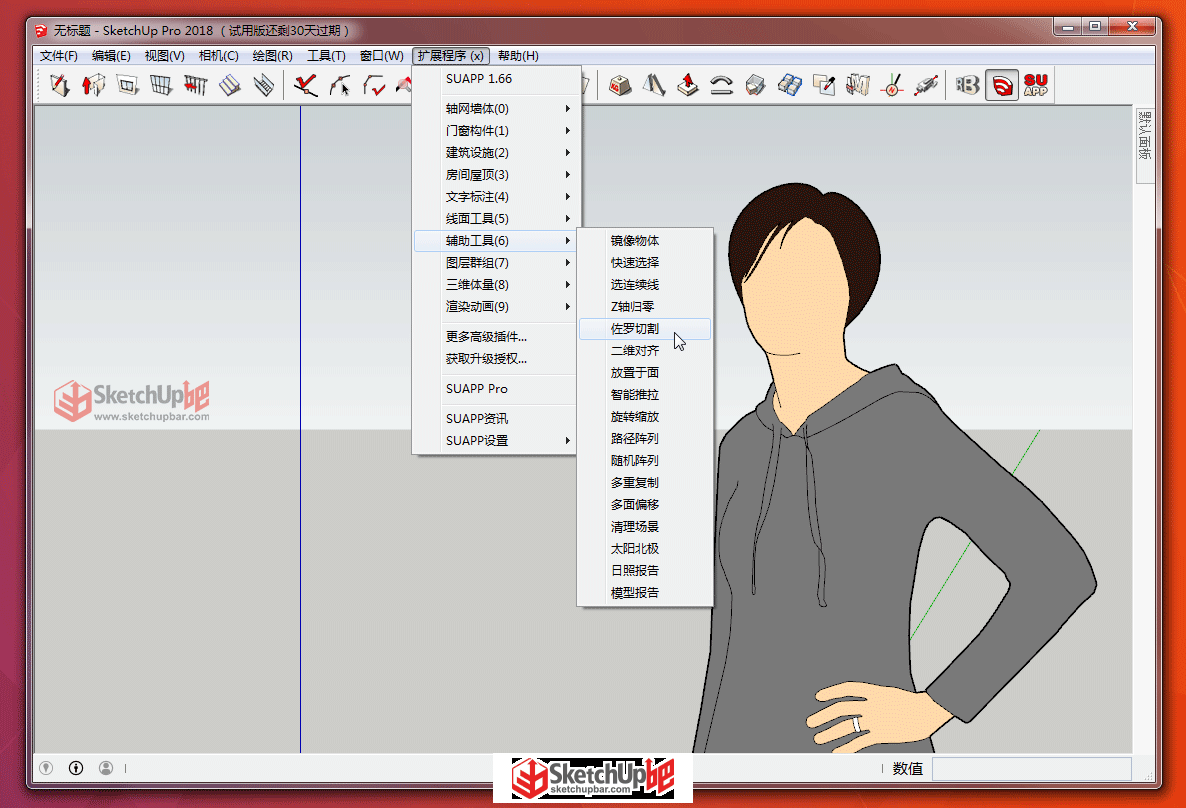

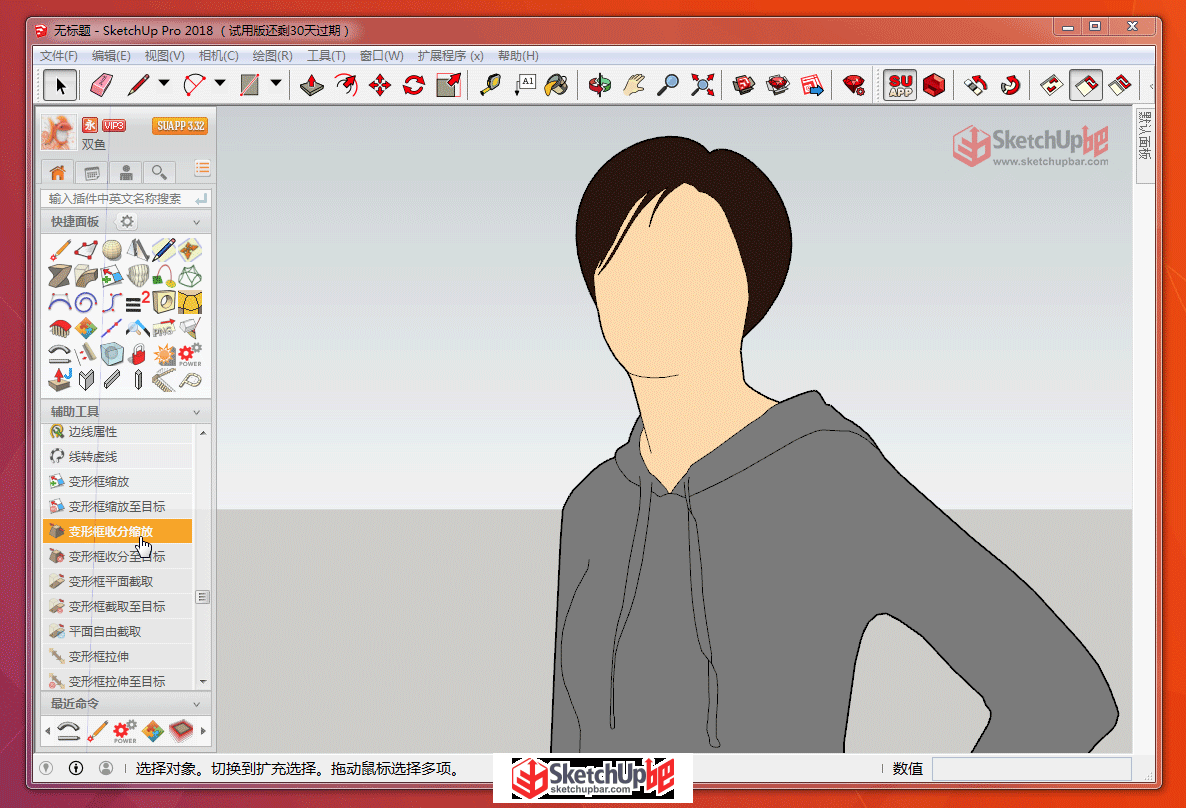

使用截圖
更新詳情
更新時間: November 14th, 2017
更新版本:
18.0.16975 (Win 64-bit)
18.0.16976 (Mac 64-bit)
更新內容：

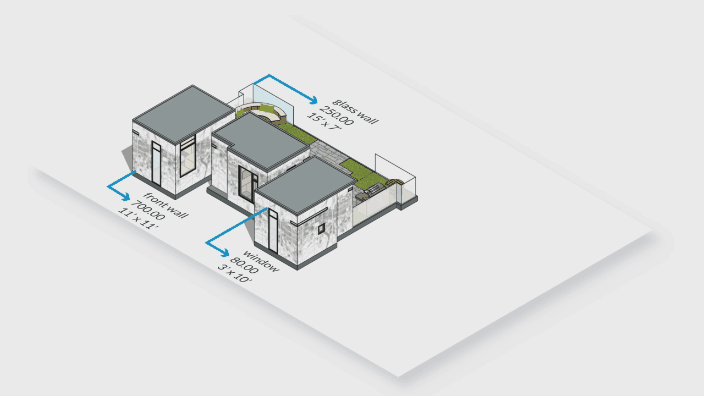

Advanced Attributes
Advanced Attributes allow you to embed useful information into your model when creating and managing components. You can now define the Price, Size and URL attributes when creating or editing components, as well as defining Owner and Status attributes for each component instance via the Entity Info dialog.

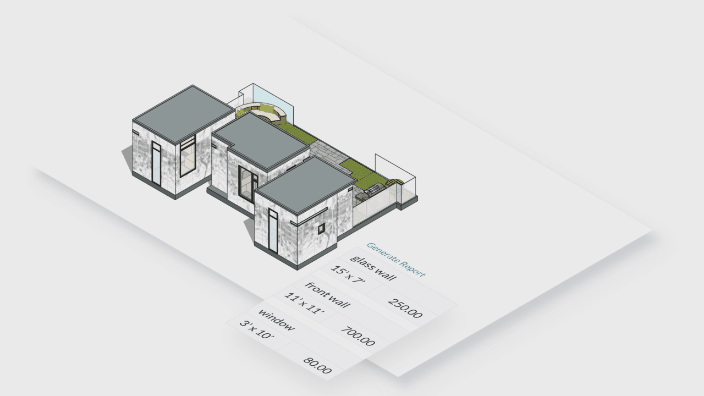

Aggregation in Generate Report
We want to make the information in SketchUp models as useful as possible. In this release, we're improving Generate Report to allow users to aggregate component data so you can extract and organize information contained in your models. That means you can configure Generate Report to sum parts and quantities for schedules and cutlists, or create detailed pricing estimates by listing prices by layer.
IFC Export Improvements
BIM doesn't really work if information can't move freely between applications. We've dialed in our IFC exporter to ensure that the attributes you bring in from other applications or manipulate in SketchUp stay with your work when it leaves SketchUp.

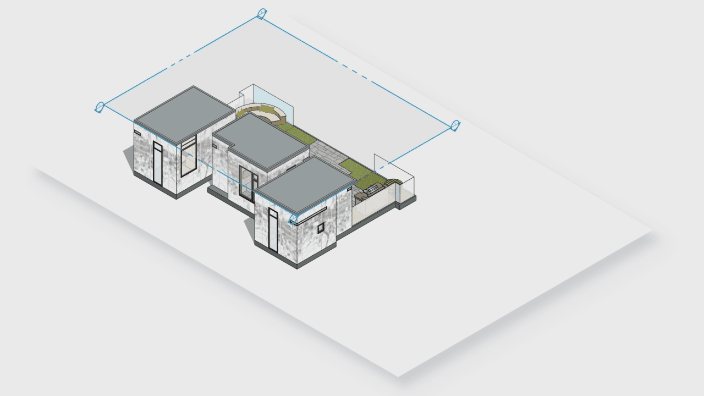

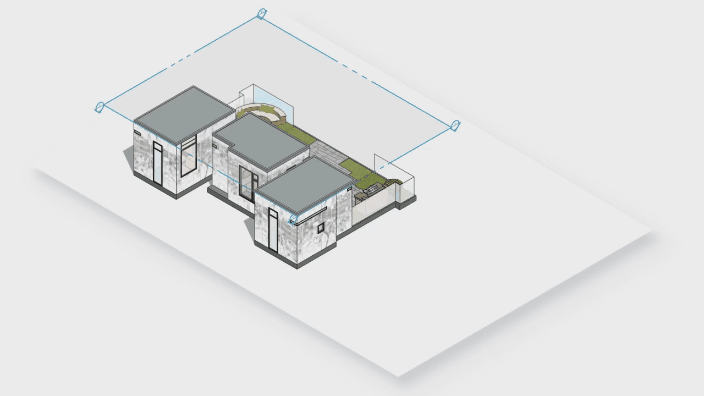

Named Section Planes
It seems simple, but naming something is the first step towards making it easier to find, organize, and edit that something. Now, even when your section planes are hidden, they're right at your fingertips. Here's how it works…
Create a new section plane and choose a name for it and a short symbol that will display in your modeling window. Your section plane is now a unique SketchUp entity that can be found in Outliner and manipulated in Entity Info. Use Outliner to quickly find, select and edit specific planes. Use Entity Info to edit naming conventions and organize section cuts into layers, then control the visibility of your section planes, cuts and fills via Styles.

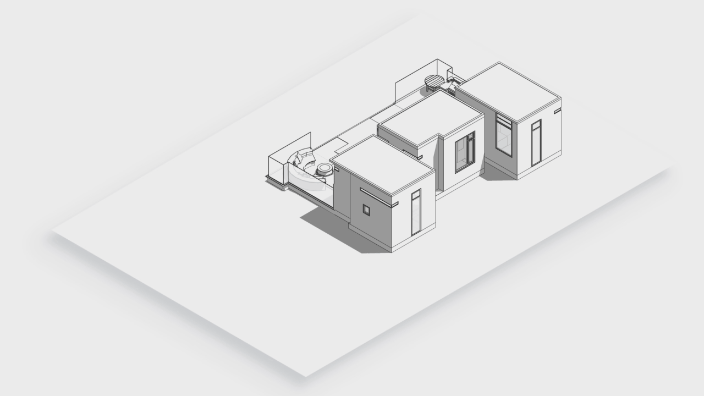

Filled, Styled Section Cuts
We have added Filled Section Cuts to SketchUp 2018. To access, open Styles > Edit > Modeling and toggle 'Section Fills' on or off, and set your desired fill color. When section fills are toggled on, SketchUp will render a fill on top of cleanly modeled sections. We’ll even help you troubleshoot geometry problems that are preventing SketchUp from recognizing the section you want to fill. Access troubleshoot mode through the section plane context menu when Section Fills are on.
Section Plane Performance
While we were at it, we improved performance for models that use section planes to hide large amounts of geometry. Basically, the more geometry you section off, the more you’ll benefit!
Other Notable Improvements and Changes Outliner
While adding support for Section Planes, we also improved Outliner's performance. Outliner no longer refreshes on many transactions that don't need it. Additionally, we improved the sort order in Outliner. Changes include:
Sorting based on Component Instance and then Definition instead of sorting based on one long string. This also applies to Section Planes - it will sort first based on the Section Name and then the Symbol.
Sorting numbers in a more intuitive way.
Sorting is now case insensitive, which means a mixture of capitalized and lowercase words sorts in a more intuitive way.
Drawing Improvements
We made some small, smart changes that help you draw exactly what you want. Including:
加入QQ群SketchUp2018熱門討論：SketchUp吧·建模群（35790441）
Draw a rectangle about its center using modifier keys (Ctrl on Win and Option on Mac).
Employ quicker control for rotated rectangles. We switched the order of entry in the VCB so you can quickly enter a dimension with no angle.
Improved workflow with Tape Measure Tool. Edge length and face area are now instantly displayed in VCB as soon as user gets "On Edge" on "On Face" inferences.
Added color coding to Freehand tool. While drawing, it is colored the same as the axis it is perpendicular to.
Reduced display of arc/circle inferences after second click of any drawing tool.
STL Import/Export
The SketchUp STL extension is by far the most popular download from Extension Warehouse. Going forward it might not be, because now SketchUp natively supports the import and export of STL files (on both desktop and web).
Anti-aliasing on the Mac
For Mac users, we've added anti-aliasing settings. Go to SketchUp > Preferences > OpenGL to control the anti-aliasing sample count, which controls the smoothness of your geometry.
Preferences Location
The majority of preferences are now stored in two json files. There are still some OS controlled preferences that remain in the registry (Win) or plist (Mac). The json files are saved in the following locations:
On Win:
PrivatePreferences.json is saved to C:\Users\\AppData\Local\SketchUp\SketchUp 2018\SketchUp SharedPreferences.json is saved to C:\Users\\AppData\Roaming\SketchUp\SketchUp 2018\SketchUp
On Mac:
Both PrivatePreferences.json and SharedPreferences.json are saved to /Users//Library/Application Support/SketchUp 2018/SketchUp
DWG Importer
The DWG Importer has been rewritten using our own C API. The goal is that the new dwg importer will work exactly the same as the 2017 version (improvements can come at a later time, now that we have code we can update and maintain more easily!). Ideally all files that imported previously will continue to import in 2018 and hopefully some files that used to fail on import will now import correctly.
Support for macOS High Sierra
Our QA team has smashed and banged on Apple's newest operating system, macOS High Sierra, enough to say that SketchUp 2018 is fully compatible.
Bug Fixes/Small Improvements
